Inline Inspection Cell

Inline vision inspection on rail-mounted cobots — the camera travels the line on a 7th-axis track to inspect every feature, with reject handling and data logging.

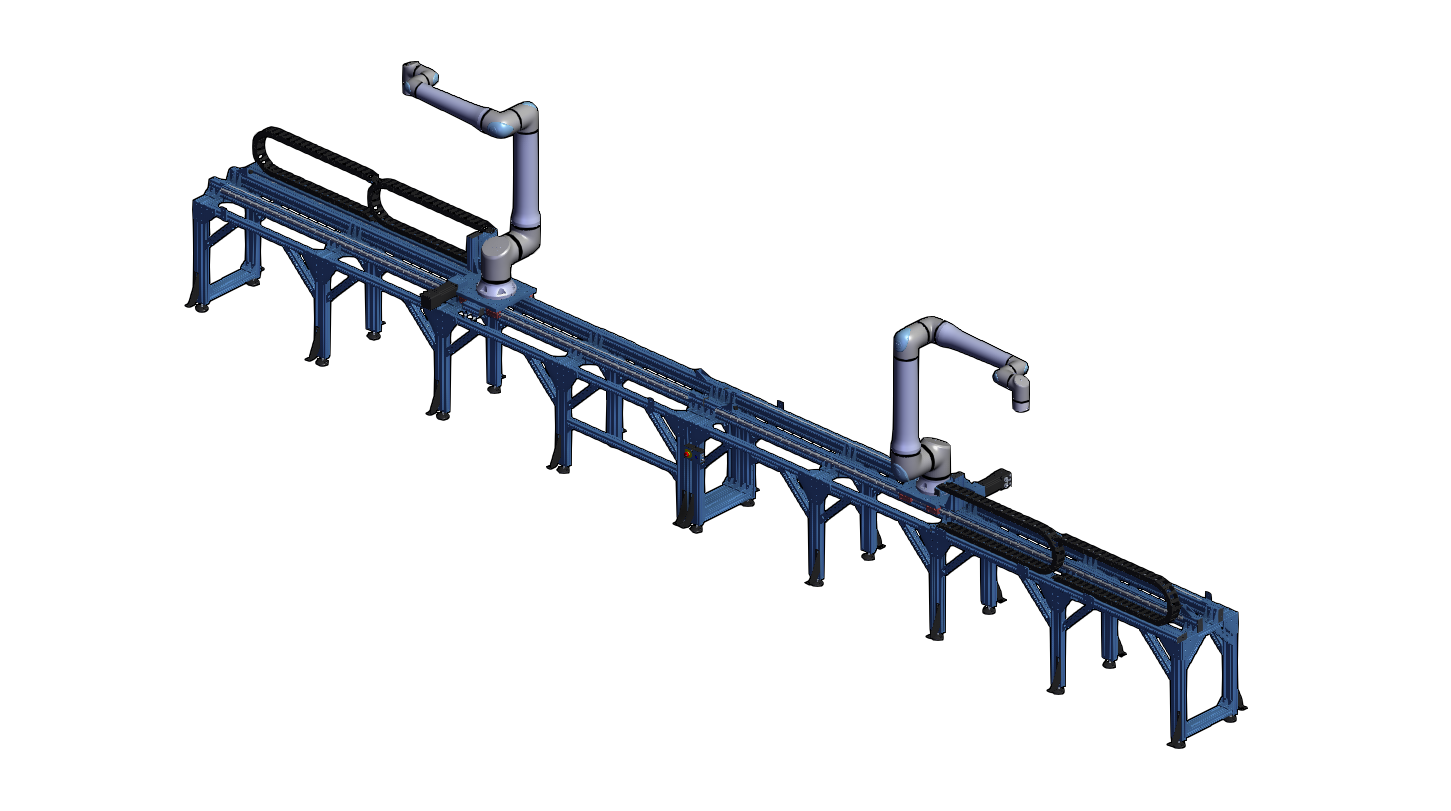

VIS-100VIS-100 Inline Inspection Cell — rail-mounted cobots carrying vision cameras on a 7th-axis traversing track over the line

Capabilities

  • Rail-mounted cobot carries the camera on a 7th-axis track — inspects along the full line
  • Configurable inspection: surface defects, dimension/gauging, presence, and print/label verification
  • Arm presents the camera to any feature — no fixed camera angle limits
  • Reject handling with verified ejection or flagging
  • Pass/fail data logging and trend reporting, tied to part/lot
  • Lighting and optics tuned to your part and line speed
  • Recipe-based changeover for multiple part numbers; integrates with line PLC

At a glance

  • ArchitectureRail-mounted cobot(s)
  • Travel7th-axis track
  • InspectionDefect / dimension / presence / print
  • CameraArm-presented
  • OutputPass/fail + data
  • RejectEject or flag
  • CodeVIS-100
  • SolutionVision Inspection
  • Lead time8–10 wks
  • FootprintInline
  • Price band$$
Request a quote for this system

Rail-mounted cobot configuration shown; single- or multi-arm per line length. Camera, optics, and inspection recipes scoped to your part on quote.

Estimate your return

ROI Calculator

Compare your current manual process against this automated system. Enter the parameters for each, plus the estimated investment, to see payback time, units to break even, and savings. These are planning estimates — we'll refine the real numbers with you on a quote.

Manual vs. Automated

Adjust any input — results update instantly.

Manual Process
$
sec
Automated (this system)
$
sec
$
$
Payback time
—
Units to break even
—
5-year net savings
—
Manual annual labor cost—
Automated annual labor cost—
Annual labor savings—
Added annual output (throughput gain)—
Net annual savings (after upkeep)—
Estimates only. Labor savings = manual labor cost − automated labor cost. Payback = investment ÷ net annual savings. Units to break even = investment ÷ savings per unit. Throughput gain reflects faster automated cycle time. Real ROI also depends on quality and uptime gains we'll scope with you.

Interested in the Inline Inspection Cell?

Submit an RFQ and we'll tailor and quote it for your plant.
