← Palletizing Solutions PAL-200 · Palletizing

High-Rate Robotic Palletizer

Conventional 4-axis palletizing cell on the FANUC M-410iC/185 — higher throughput, 140" stack height, fenced safety package.

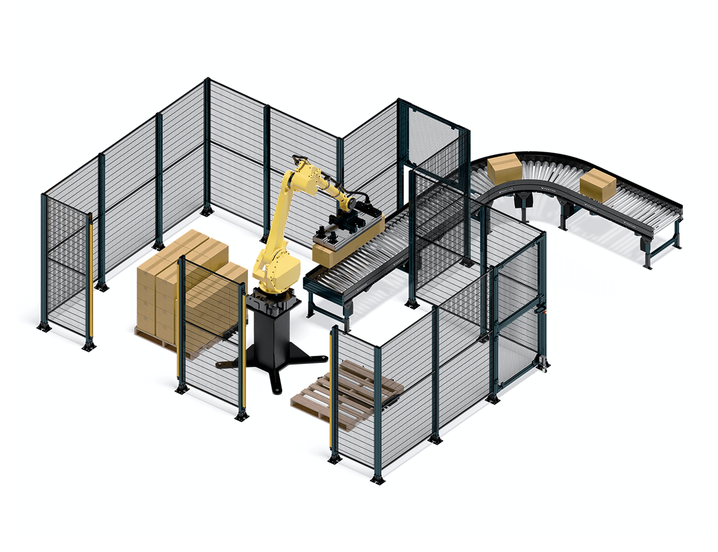

PAL-200PAL-200 High-Rate Robotic Palletizer — fenced FANUC M-410iC/185 cell with infeed conveyor and pallet build positions
300 lbsMaximum Payload
12 picksPer Minute
140"Pallet Height

Capabilities

  • High-speed 4-axis robotic palletizing for cases, cartons, and bags
  • Fenced safety package with light curtains and interlocked access
  • Configurable pallet patterns via HMI recipe selector
  • Full 140" stack height with integrated infeed metering
  • Vacuum or clamp end-of-arm tooling options
  • Integrates with existing infeed and pallet dispensing

At a glance

  • Throughputup to 12 picks/min
  • Payload300 lb (up to 185 kg)
  • Reach3143 mm (124")
  • Stack heightup to 140"
  • RobotFANUC M-410iC/185, 4-axis
  • Repeatability±0.05 mm
  • SafetyFenced + light curtain
  • CodePAL-200
  • SolutionPalletizing
  • Lead time8–10 wks
  • Footprint14 x 16 ft
  • Price band$$$
Request a quote for this system

Robot specs per FANUC M-410iC/185. Footprint, EOAT, and pallet pattern set finalized on quote.

Estimate your return

ROI Calculator

Compare your current manual process against this automated system. Enter the parameters for each, plus the estimated investment, to see payback time, units to break even, and savings. These are planning estimates — we'll refine the real numbers with you on a quote.

Manual vs. Automated

Adjust any input — results update instantly.

Manual Process
$
sec
Automated (this system)
$
sec
$
$
Payback time
—
Units to break even
—
5-year net savings
—
Manual annual labor cost—
Automated annual labor cost—
Annual labor savings—
Added annual output (throughput gain)—
Net annual savings (after upkeep)—
Estimates only. Labor savings = manual labor cost − automated labor cost. Payback = investment ÷ net annual savings. Units to break even = investment ÷ savings per unit. Throughput gain reflects faster automated cycle time. Real ROI also depends on quality and uptime gains we'll scope with you.
