← Palletizing Solutions PAL-100 · Manufacturing

Cobot Palletizer

Collaborative end-of-line palletizing on the FANUC CRX-30iA — dual-pallet, fenceless, ready to drop in.

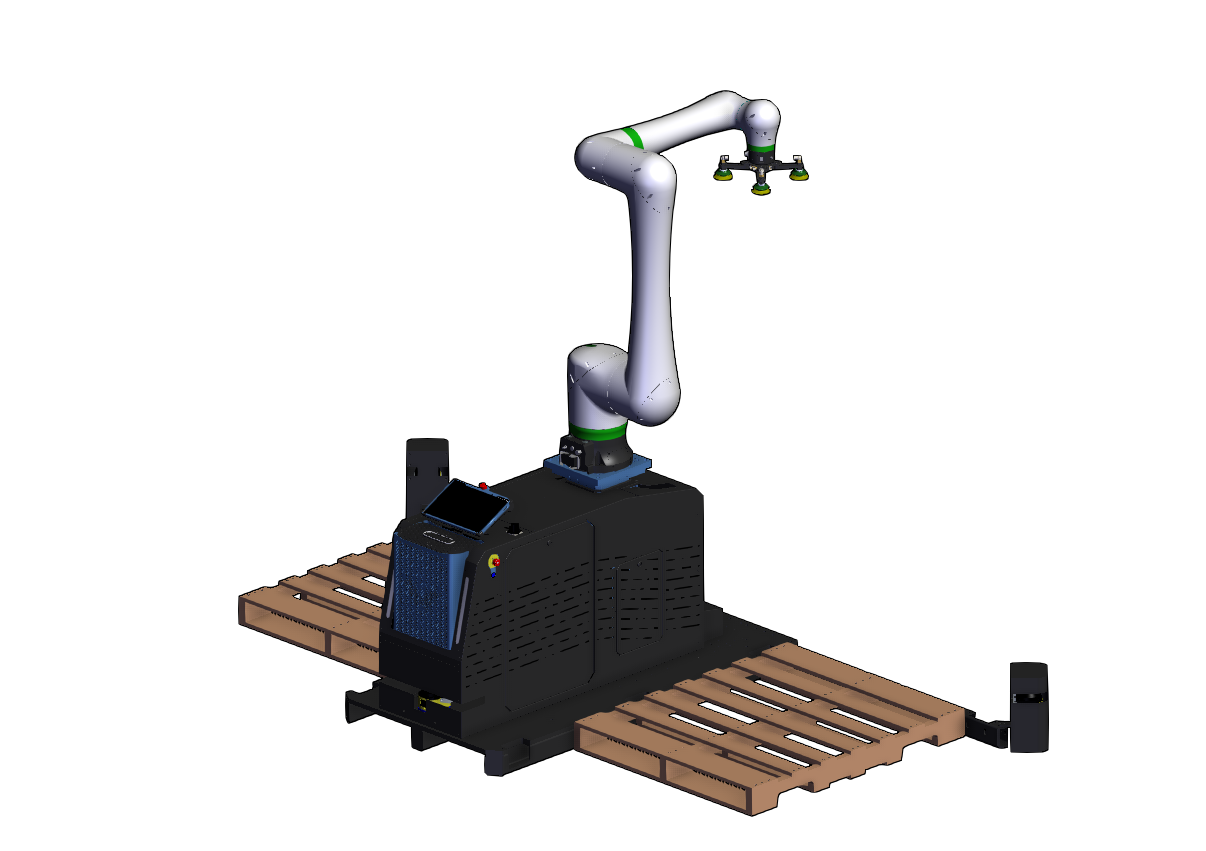

PAL-100PAL-100 Cobot Palletizer — FANUC CRX-30iA on mobile base with dual pallet positions and vacuum end-of-arm tooling
66 lbsMaximum Payload
13 picksPer Minute
136"Pallet Height

Capabilities

  • Collaborative palletizing for cases, cartons, trays, and bags
  • FANUC CRX-30iA cobot — fenceless operation via internal force sensing
  • Dual-pallet build positions for continuous run while a pallet is swapped
  • Configurable pallet patterns via HMI recipe selector
  • Multi-zone vacuum end-of-arm tooling; clamp EOAT optional
  • Integrated lift column for full 136" stack height
  • Drops onto existing infeed conveyor; runs on standard plant power

At a glance

  • Throughputup to 13 picks/min
  • Payload66 lb (30 kg)
  • Reach1756 mm (69")
  • Stack heightup to 136"
  • RobotFANUC CRX-30iA, 6-axis
  • Repeatability±0.05 mm
  • SafetyForce-sensing, fenceless*
  • CodePAL-100
  • IndustryPalletizing
  • Lead time6–8 wks
  • Footprint12 x 14 ft
  • Price band$$
Request a quote for this system

*Fenceless operation subject to on-site risk assessment (ISO 10218 / ISO/TS 15066). Robot specs per FANUC CRX-30iA. Footprint, EOAT, and pattern set finalized on quote.

Estimate your return

ROI Calculator

Compare your current manual process against this automated system. Enter the parameters for each, plus the estimated investment, to see payback time, units to break even, and savings. These are planning estimates — we'll refine the real numbers with you on a quote.

Manual vs. Automated

Adjust any input — results update instantly.

Manual Process
$
sec
Automated (this system)
$
sec
$
$
Payback time
—
Units to break even
—
5-year net savings
—
Manual annual labor cost—
Automated annual labor cost—
Annual labor savings—
Added annual output (throughput gain)—
Net annual savings (after upkeep)—
Estimates only. Labor savings = manual labor cost − automated labor cost. Payback = investment ÷ net annual savings. Units to break even = investment ÷ savings per unit. Throughput gain reflects faster automated cycle time. Real ROI also depends on quality and uptime gains we'll scope with you.

Interested in the Cobot Palletizer?

Submit an RFQ and we'll tailor and quote it for your plant.

Submit an RFQ
