Case Packing Module

Cartesian (X-Y-Z gantry) case packing module with product handling, top-load packing, and date/lot verification.

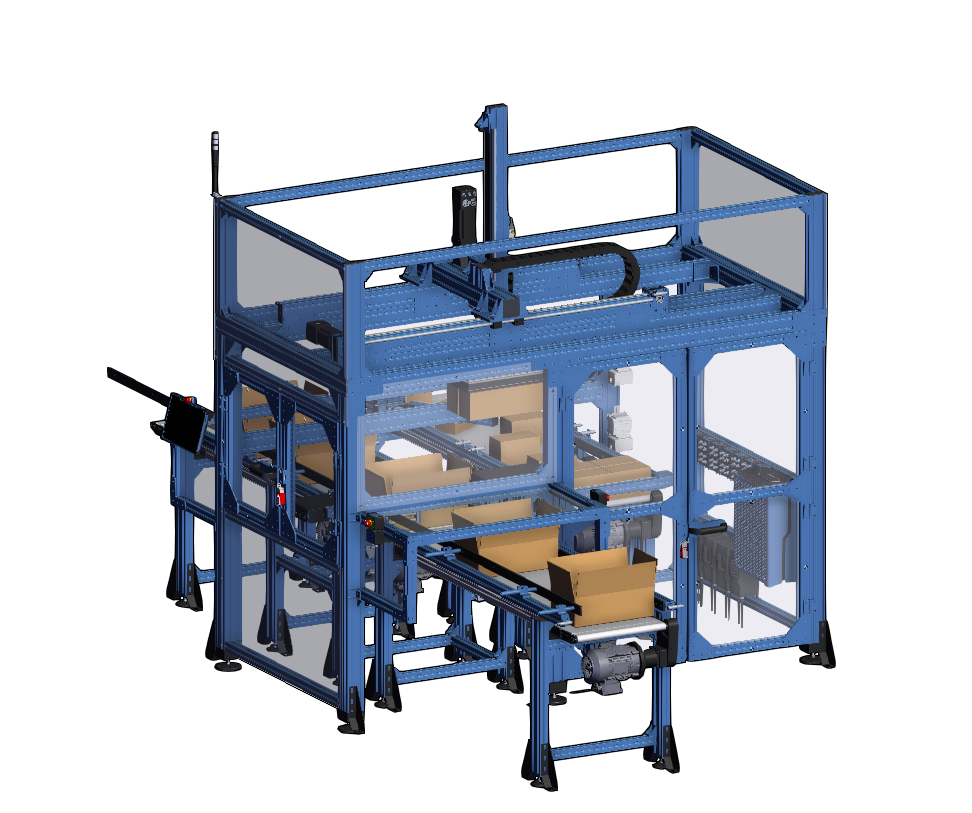

PAK-200PAK-200 Case Packing Module — Cartesian X-Y-Z gantry over a fenced cell with case infeed conveyor and product handling

Capabilities

  • Cartesian X-Y-Z gantry pack head for precise, repeatable top-load placement
  • Product collation and grouping ahead of pack
  • Date/lot code verification before sealing
  • Fenced enclosure on extruded-aluminum frame with light curtains and interlocks
  • Integrates with the PAK-100 erector and downstream sealer
  • Recipe-based changeover for product, pack pattern, and count

At a glance

  • ArchitectureCartesian X-Y-Z gantry
  • FunctionPack + verify
  • ModeTop-load
  • Footprint10 x 12 ft
  • VerifyDate/lot code
  • SafetyFenced + light curtain
  • CodePAK-200
  • SolutionCase Packing
  • Lead time8–10 wks
  • Footprint10 x 12 ft
  • Price band$$$
Request a quote for this system

Cartesian gantry configuration shown. Footprint, pack pattern, and gripper finalized on quote.

Estimate your return

ROI Calculator

Compare your current manual process against this automated system. Enter the parameters for each, plus the estimated investment, to see payback time, units to break even, and savings. These are planning estimates — we'll refine the real numbers with you on a quote.

Manual vs. Automated

Adjust any input — results update instantly.

Manual Process
$
sec
Automated (this system)
$
sec
$
$
Payback time
—
Units to break even
—
5-year net savings
—
Manual annual labor cost—
Automated annual labor cost—
Annual labor savings—
Added annual output (throughput gain)—
Net annual savings (after upkeep)—
Estimates only. Labor savings = manual labor cost − automated labor cost. Payback = investment ÷ net annual savings. Units to break even = investment ÷ savings per unit. Throughput gain reflects faster automated cycle time. Real ROI also depends on quality and uptime gains we'll scope with you.

Interested in the Case Packing Module?

Submit an RFQ and we'll tailor and quote it for your plant.
